Valve

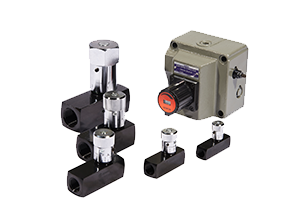

Flow Control Valve

Flow control valve is used for controlling the speed of the actuator mainly.

Our products can be classified into various ones with accurate speed controlling and safe control.

• Flow Control Valve



  Flow Control/Flow Control and Check Valve

  Maximum operating pressure : 21MPa

  Maximum metered flow rate : 125LPM

  Available for the pressure & temperature assurance types and the accurate controlling


• Flow Control Valve



  Throttle/Throttle and Check Valve

  Maximum operating pressure : 25MPa

  Maximum metered flow rate : 30LPM

  Availability of the chock valve


• Flow Control Valve



  Needle/speed Control Valve

  Maximum operating pressure : 35MPa

  Availability of the stop valve and the throttle valve Speed controlling of the actuator



It is not available to read the catalog without installing

Adobe Reader

Please install Adobe Reader before you download the catalog

Adobe Reader DOWNLOAD

You may get detailed information of the hydraulic cylinder

by the product appearances and the numerical values

through the CAD program.

AutoCAD DOWNLOAD

• In manufacturing various automated devices or relational devices, we may control the devices in advance by using the program, check the interferences, and help the clients to review the plan and confirm the specifications rapidly.
• If you click on the desired standard on the program, it will show the automatic model composition and the outside views reflected with the frontal views, the ground views and the right side views of the ratio 1:1 which is identical with the catalog.
• We have included the hydraulic symbols for the hydraulic circuit design and the Auto-CAD files such as Sewon hydraulic valves.

Installation method

After it starts automatically, select the AutoCAD version and click on the ‘check’ button. (If it does not start automatically, please activate ‘SETUO.EXE’ in the folder of the AutoCAD version.

Activate AutoCAD and add ‘C:\Sewon_Yuken’ to the support file search path after clicking on tool, option and file.
